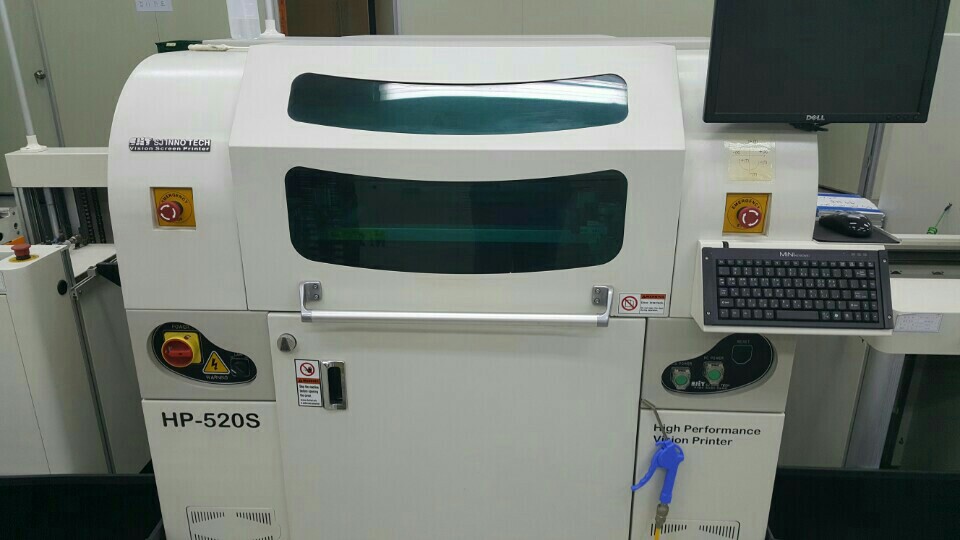

SJ Innotech HP-520S

Screen Printer
SJ Innotech
HP-520S
2011year
Left to Right, Front Fixed (Revisable Right to Left)
Power : 220V 1Phase 50/60Hz
Printing (±0.0125mm) Repeatability (±0.01mm)
0.3 Pitch QFP, 0402 Chip, Ø0.2 MBGA
Stencil frame size : STD : 600 x 550 mm (L x W), 650 x 550 mm , 736 x 736 mm
PCB Size : 50 x 50 ∼ 520mm x 420mm
1910(L)x1750(W)x1457(H) 1,200Kg
Speed/pressure control by printing section (5 sections)
Various PCB Clamping by PCB type
Various Auto Under Stencil Cleaning
Improved lead-release utilizing the multistage sheet separation method
Convenient to change the stencil size with the LM Guide
Load-cell control for precise pressure control
